Palfinger PHT 22 Hooklifts

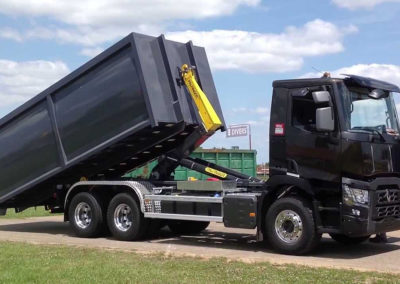

Palfinger PHT 22 Series hooklifts are designed to carry 9-12′ or 12′-15′ containers on chassis with 26,000 GVW and above.  They use high pressure, double articulating lift cylinders that smoothly and quickly lifts up to 22,000 lb loads without the driver ever having to leave the cab.

APPLICATIONS

Palfinger PHT 22 Series hooklifts are the highest quality lifting system available for your 26,000 GVW and above truck.  Easily load and unload containers and bodies with one person from inside our outside the cab.  Like all T series hooklifts, it utilizes high pressure (4,500 PSI) dual articulating lift cylinders, for smooth, quick operation.  The PHT 22 Series comes in 2 sizes, the PHT 22 S and the PHT 22 L.  The T 20 S is designed for 108″-120″ CA chassis and can carry 9′-12′ containers and bodies.  The PHT 22 L is designed for 130″-140″ CA chassis and can carry 12′-15′ containers and bodies.  Popular chassis for this hooklift include the Ford F750, International HV, International HX,  International Workstar, Freightliner 108, Hino 338, Western Star 4700, Kenworth T370, and Kenworth K370 and more.

SPECIFICATIONS
  • Capacity: 20,000 lbs.
  • Minimum GVWR: 26,000 lbs.
  • Minimum Front Suspension: 8,000 lbs.
  • Minimum Rear Suspension: 18,00 lbs.
  • Jib Height: 54″
  • Minimum CA/CT: 108″-120″ or 130″-140″
  • Container Lengths: 9′-12′ or 12′-15′
  • Articulation: Dual
  • Dump Angle: 52˚ or 49˚
  • Platform Length: 126″ or 144″
  • Operating Pressure (PSI): 4,500
CONTAINER OPTIONS
  • Dumpster Containers
  • Enclosed Containers
  • Packer Containers
  • Flatbeds/Platforms
  • Dump Bodies
  • Landscaper Bodies
  • Chipper Bodies
  • Rack/Stake Bodies
  • Salt Spreaders
  • Liquid Tanks
  • Utility Bodies
