Palfinger T 50 Series Hooklifts



Request A Quote

Palfinger T 50 Hooklifts

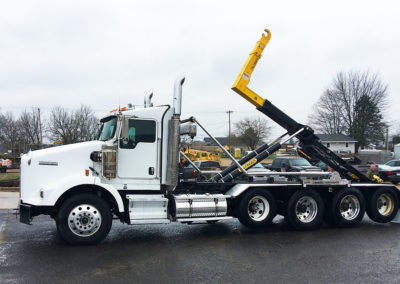

Palfinger T 50 Series hooklifts are designed to carry 16′-22′ containers on chassis with 64,000 GVW and above.  They use high pressure, double articulating lift cylinders that quickly lift up to 50,000 lb loads without the driver ever having to leave the cab

APPLICATIONS

Palfinger T 50 Series hooklifts are the highest quality lifting system available for your 64,000 GVW and above truck.  Easily load and unload containers and bodies with one person from inside our outside the cab.  Like all T series hooklifts, it utilizes high pressure (4,500 PSI) dual articulating lift cylinders, for smooth, quick operation. The T 50 is designed for 185″-195″ CA/CT chassis and can carry 16′-22′ containers and bodies.  Popular chassis for this hooklift include the International HV, International HX,  Freightliner 114, Western Star 4800, Volvo VHD, Kenworth T880, Mack Granite and more.

SPECIFICATIONS
  • Capacity: 50,000 lbs.
  • Minimum GVWR: 64,000 lbs.
  • Minimum Front Suspension: 18,000 lbs.
  • Minimum Rear Suspension: 46,000 lbs.
  • Jib Height: 54″ or 61 3/4″
  • Minimum CA/CT: 185″-195″
  • Container Lengths: 16′-22′
  • Articulation: Dual
  • Dump Angle: 48˚
  • Platform Length: 253″
  • Operating Pressure (PSI): 4,500
CONTAINER OPTIONS
  • Dumpster Containers
  • Enclosed Containers
  • Packer Containers
  • Flatbeds/Platforms
  • Dump Bodies
  • Landscaper Bodies
  • Chipper Bodies
  • Rack/Stake Bodies
  • Salt Spreaders
  • Liquid Tanks
  • Utility Bodies
